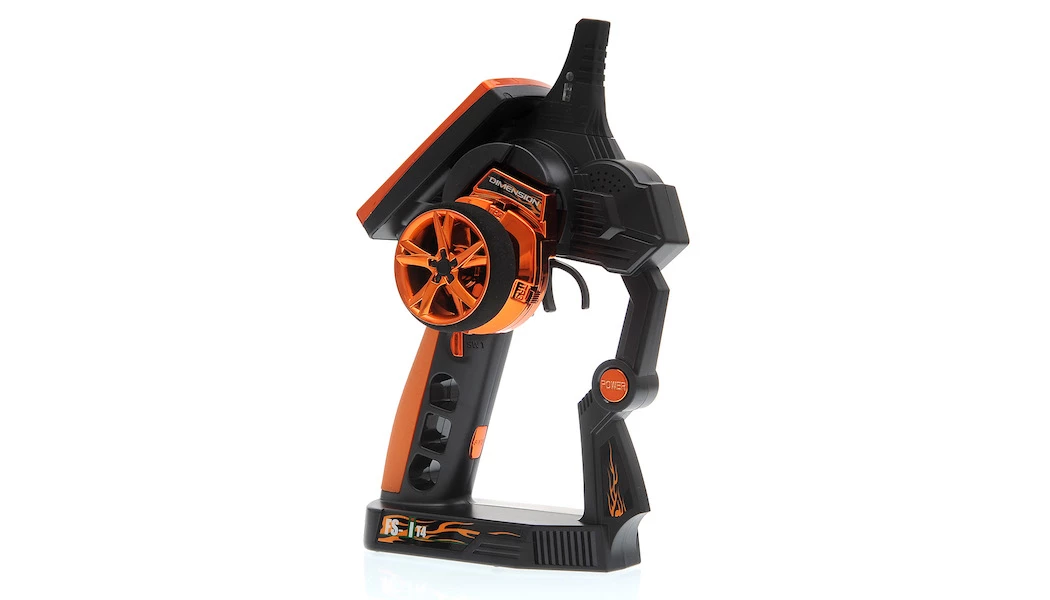

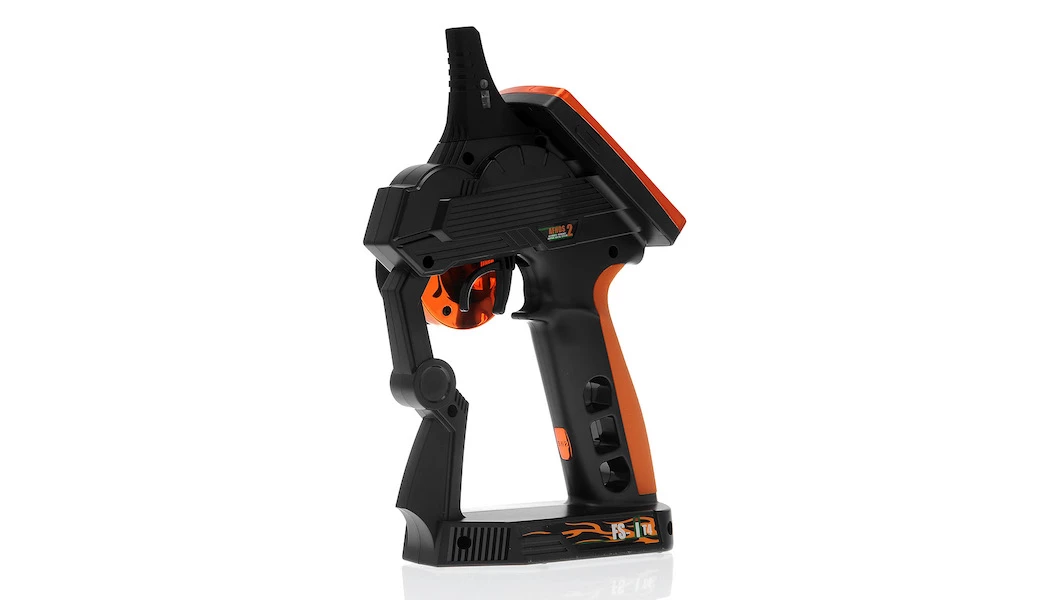

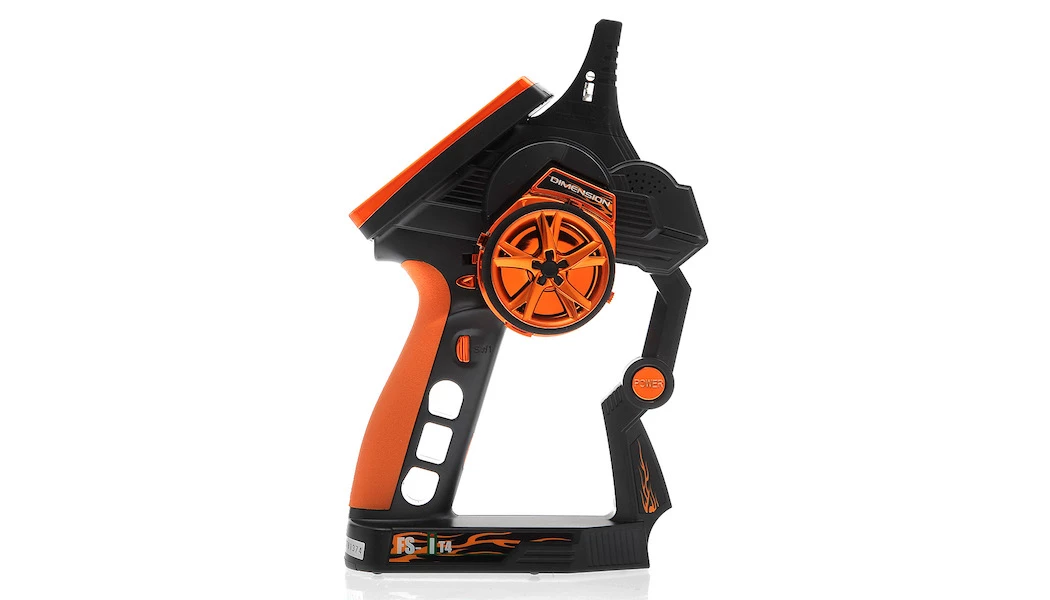

Fly Sky FS-iT4 4 Channel 2.4ghz Telemetry Radio System (Orange) 79P-IT4-TouchScreen-Radio-Orange

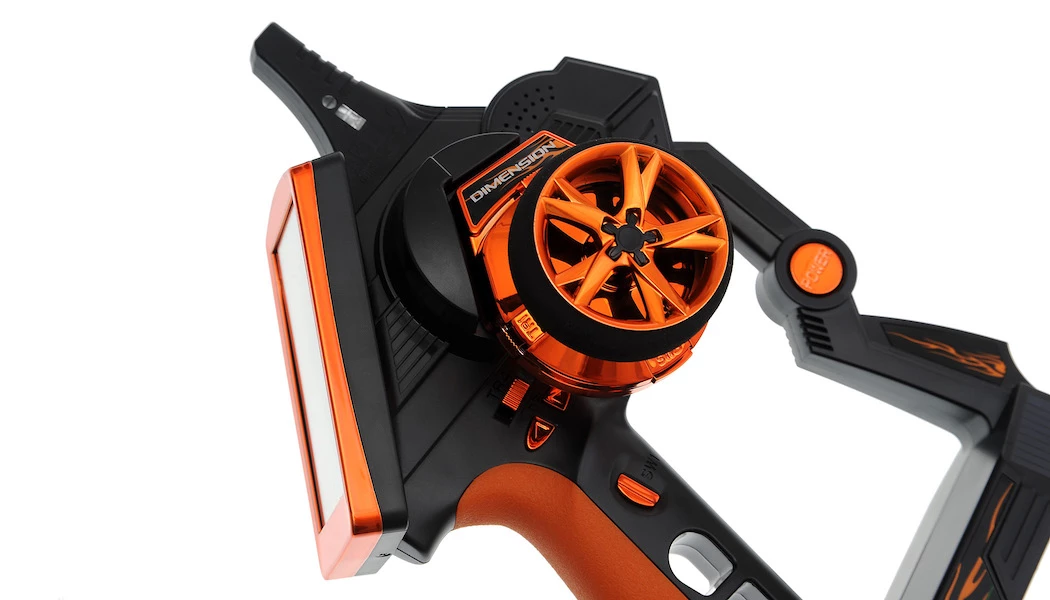

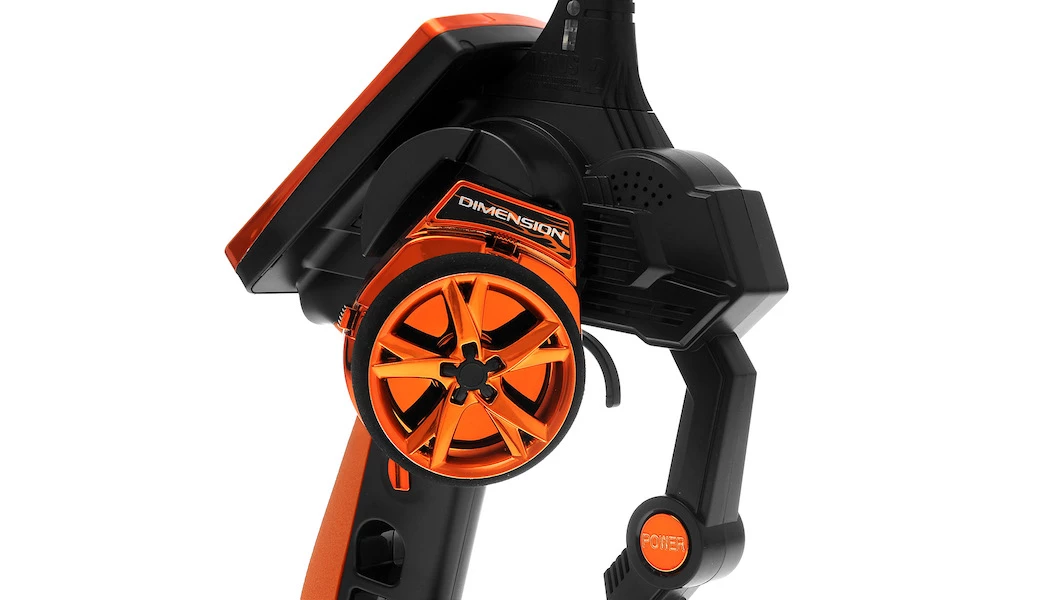

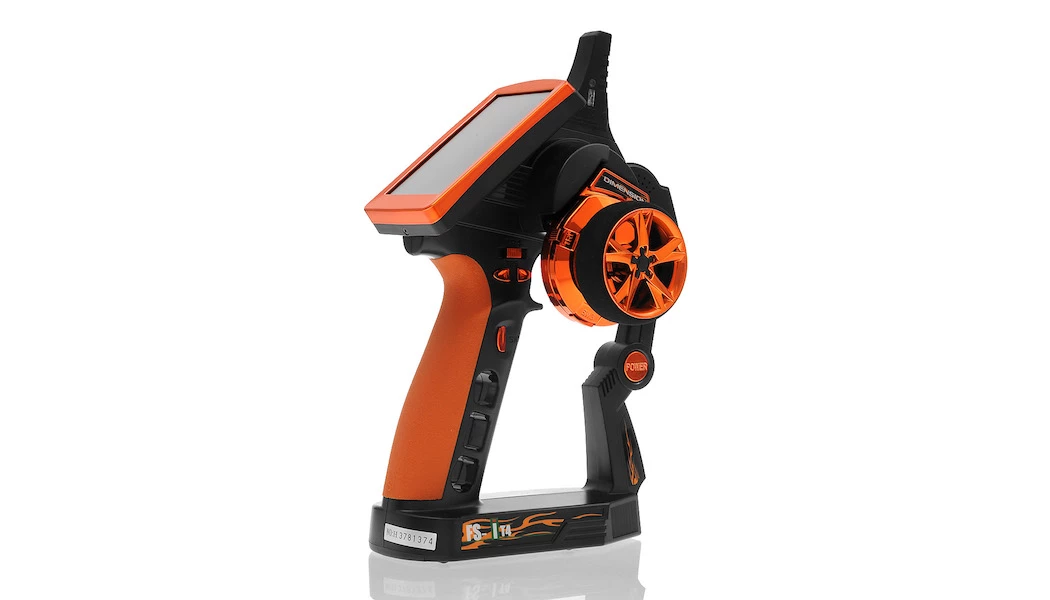

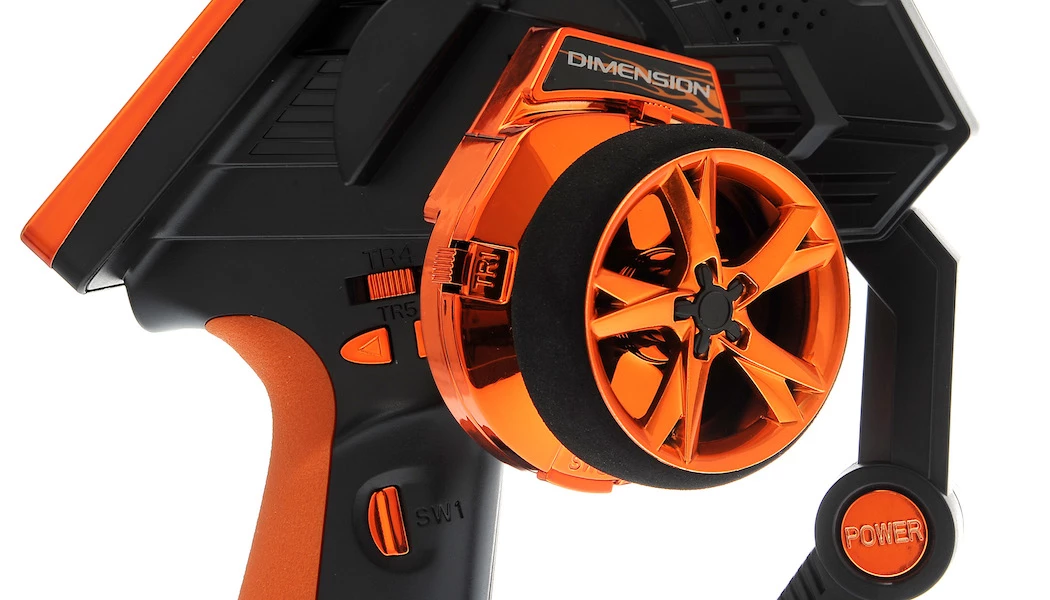

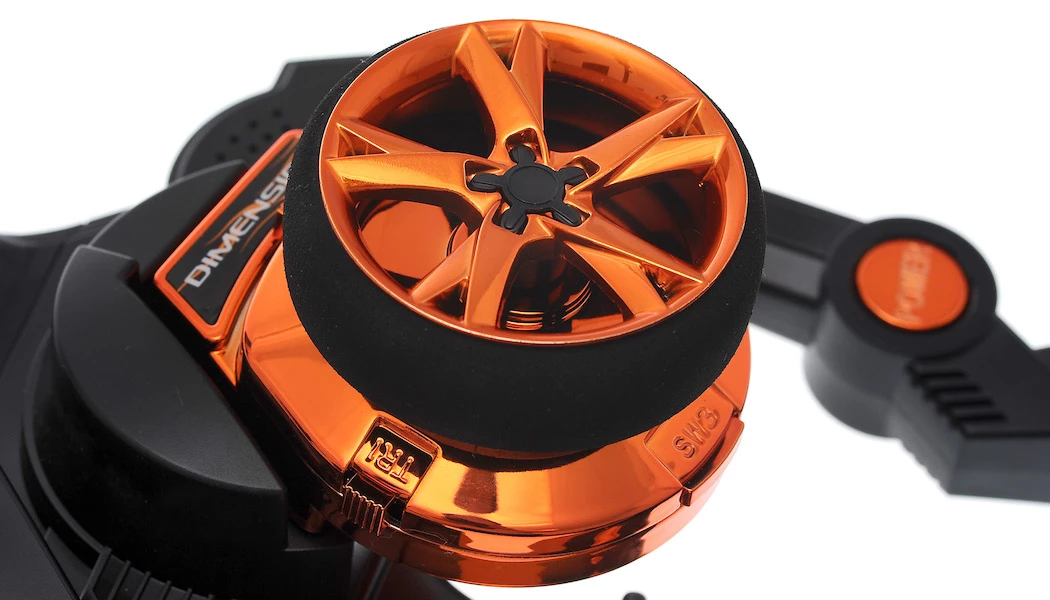

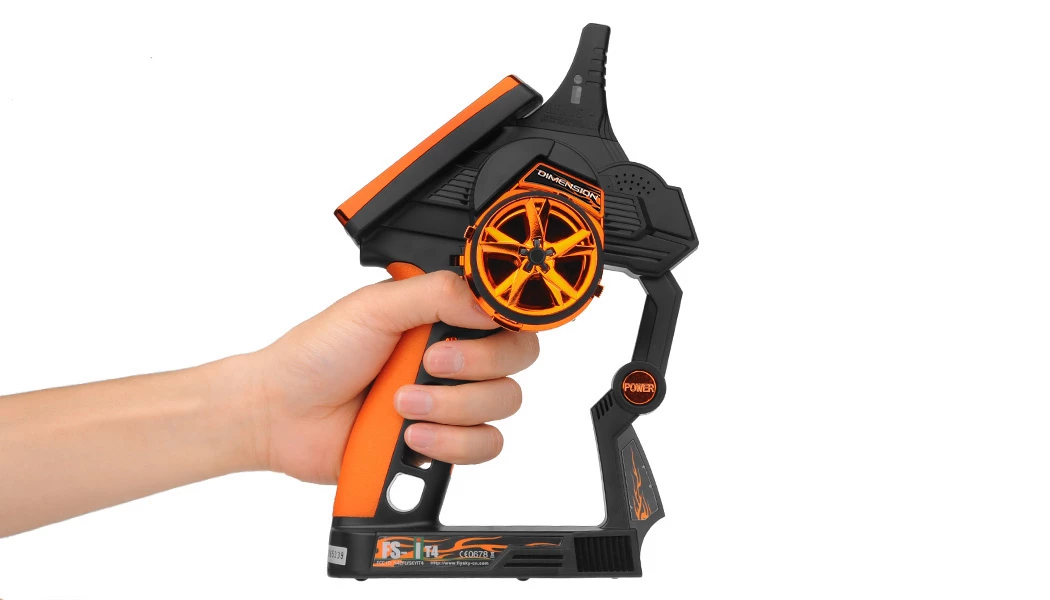

The FS-iT4 is Fly Sky’s newest 2.4ghz radio system. This Fly Sky radio is loaded with tons of features that allow the user to easily configure their radio control model. The iT4 is capable of storing 20 models in its internal memory and has the ability to graphically represent all trim, exponential, and dual rate adjustments. The graphical representations are extremely useful in depicting how the car will react to the parameter changes. The switch and trim buttons surrounding the steering wheel are fully programmable allowing the user to program each specific button to do a specific task manually assigned. The steering wheel housing pivots allowing the driver to configure the steering wheel angle for the ultimate comfort. Comfort can be further enhanced by the removable rubber pistol grip. Two sizes of small and large are included in the radio package.

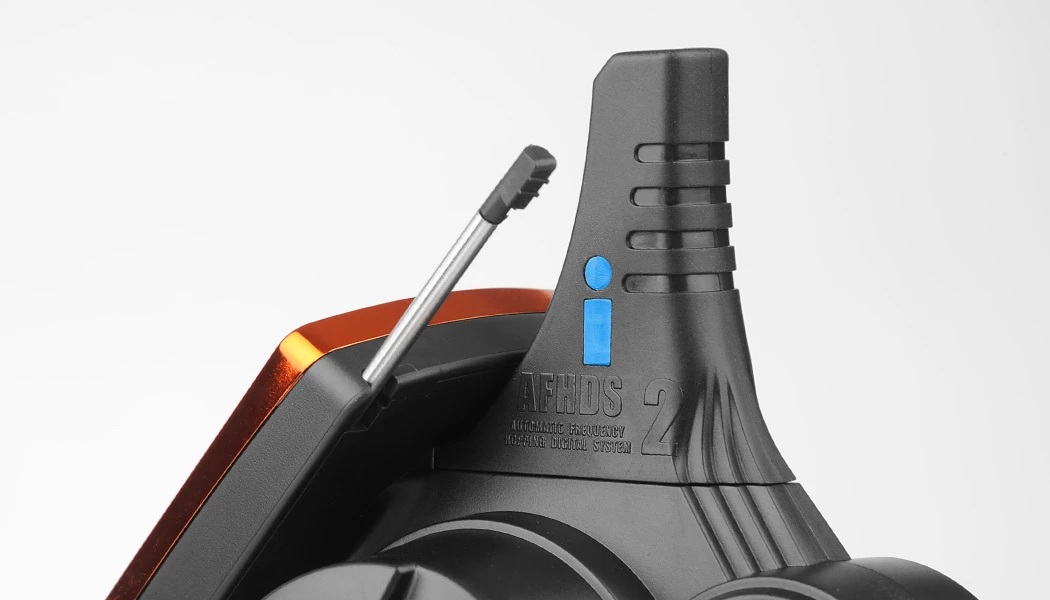

The iT4 features a second-generation automatic frequency hopping digital system transmitter (AFHDS 2) capable of receiving transmission parameter information, such as voltage, temperature, and speed from the receiver. In other words, this radio features full telemetry function with the ability to piggy back multiple sensors. The iT4 comes equipped with voltage, temperature, and speed sensors ready to hook up to the receiver.

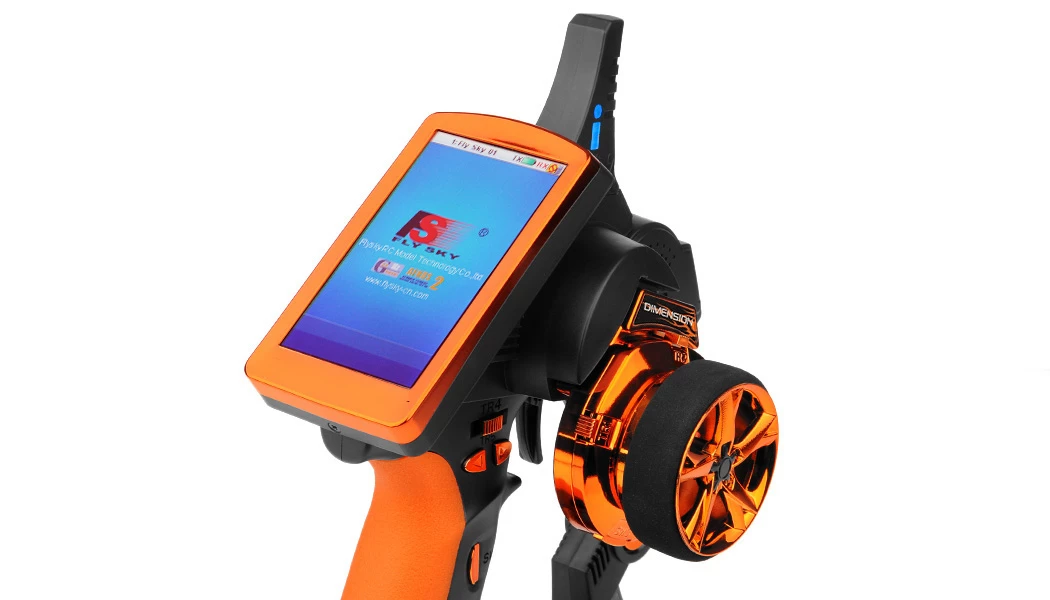

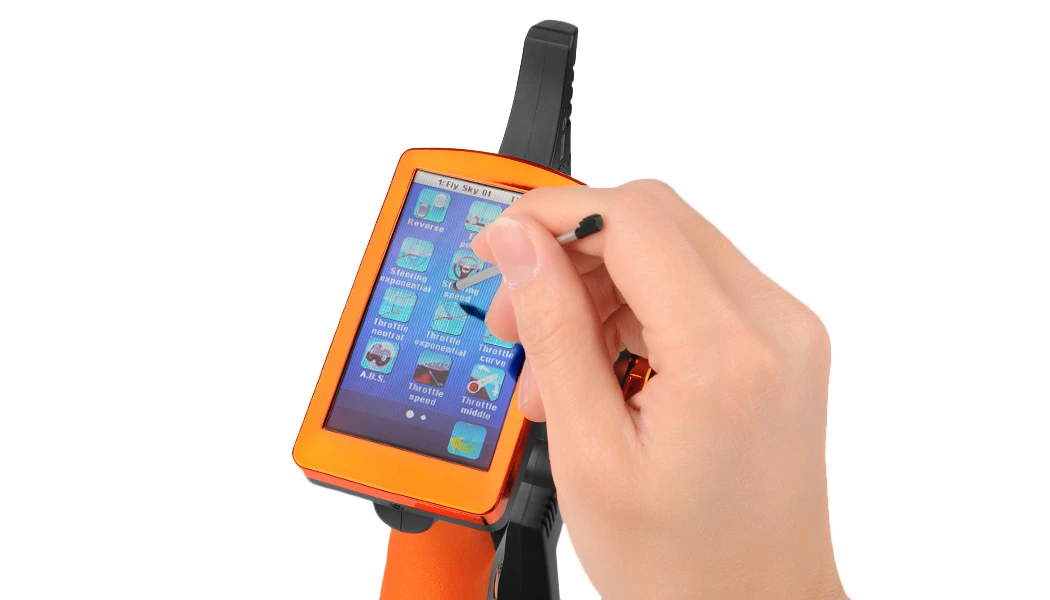

The FS-iT4’s large screen display features touch screen technology allowing greater convenience in parameter settings. A stylus is also included to protect the screen from scratches especially when your fingers are caked in grease, grim, and dirt from working on the vehicle.

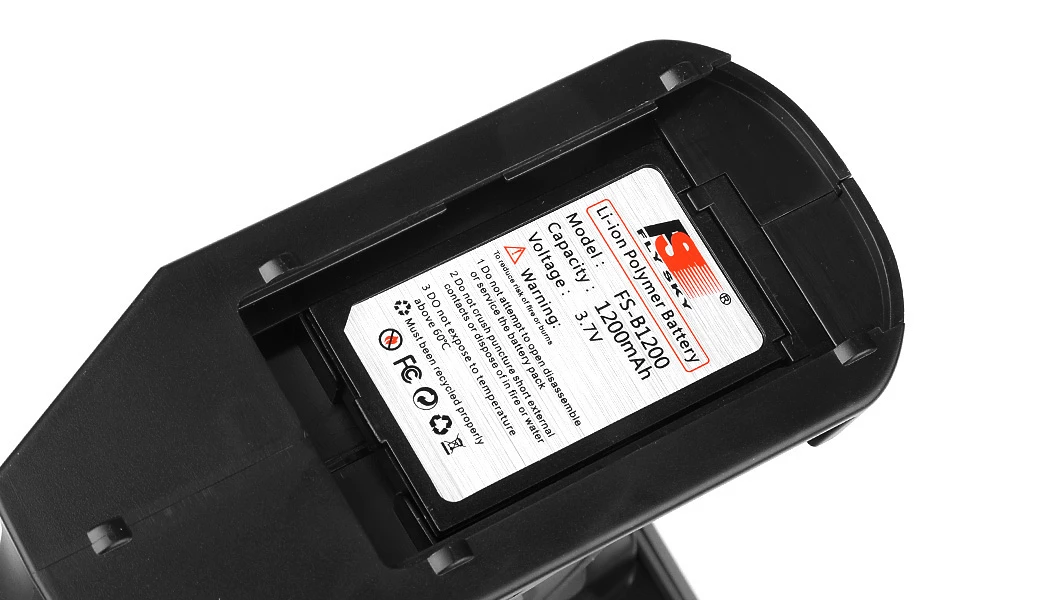

The FS-iT4 is powered by a single 3.7v 1200mah Lithium Polymer Battery and is charged via a micro USB port on the transmitter. The radio can be had in two flavors; chrome black and orange crush.

Features:

• Servo Reversing
• End Point Adjustment
• Sub-trim Adjustment
• Steering Exponential
• Steering Speed Adjustment
• Steering Mix Adjustment
• Throttle Neutral (Dead Zone) Range Adjustment
• Throttle Exponential Adjustment
• Throttle Curve Adjustment
• ABS Braking Programming
• Throttle Speed Adjustment
• Throttle Centering Position Programming
• Throttle Idle Up Programming
• Engine Cut Programming
• Boat Mode
• Brake Mixing
• Full Channel Mixing
• Servo Movement Display
• Race Timer
• Key Programming
• 20 Model Memory



?
Transmitter Specifications:
Channels: 4
Model type: car/boat
RF range: 2.4-2.48GHz
Bandwidth: 500KHz
Band: 160
RF power: less than 20 dBm
2.4G system: AFHDS 2
Code type: GFSK
Sensitivity: 1024
Low voltage warning: yes(less than 3.5V)
DSC port: yes(USB; output: PPM)
ST range: 90
TH range: 45(F: 30;B:15)
Charger port: yes
Power: 3.7V(1200mAh)
Weight: 347g
ANT length: 26mm
Size: 157*116*258mm
Color: black
Certificate: CE0678, FCC

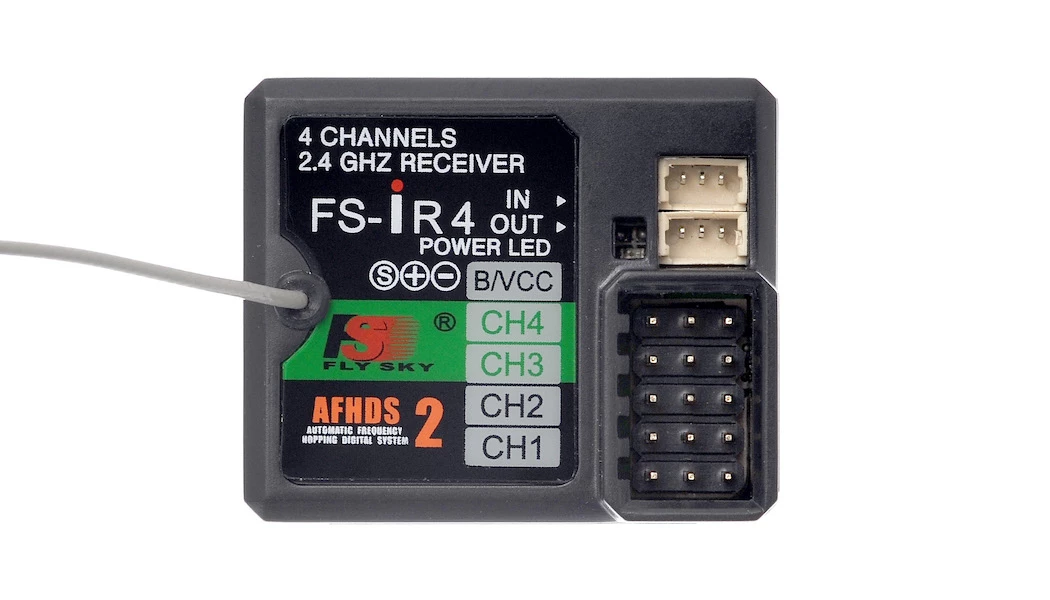

Receiver Specifications:
Channels: 4
Model type: car/boat
RF range: 2.40-2.48GHz
Band: 160
RF power: less than 20 dBm
RX Sensitivity: -105 dBm
2.4G system: AFHDS2
Code type: GFSK
Power: 4.0-8.4V DC
Weight: 15g
ANT length: 26mm
Size: 35.4*29.6*13mm
Color: black
Certificate: CE0678, FCC
AS-Bus PORT: yes
Data Acquisition port: yes

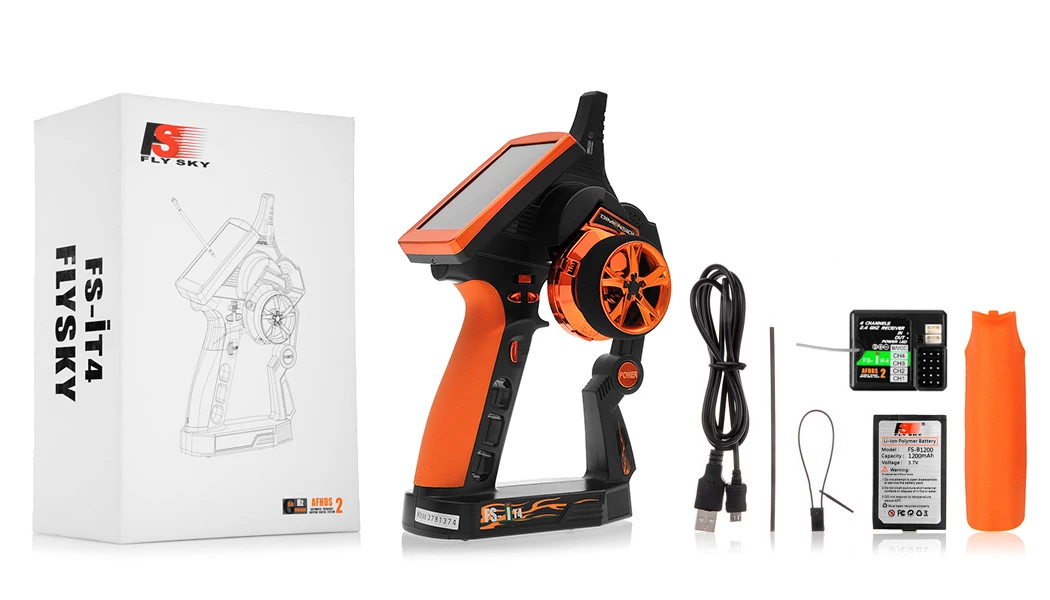

Included in Package:
Fly Sky FS-iT4 AFHDS 2 Transmitter
Fly Sky FS-iR4 AFHDS 2 Receiver
FS-BA1200 Lipo battery?
FS-PEN01 Stylus
FS-SPD01 Rotation speed telemetry
FS-STM01 Tempreture telemetry
FS-SVT01 External voltage telemetry
Bind Plug
Additional Rubber Grip
Micro USB Charging Cord

Please click here for User’s Manual
